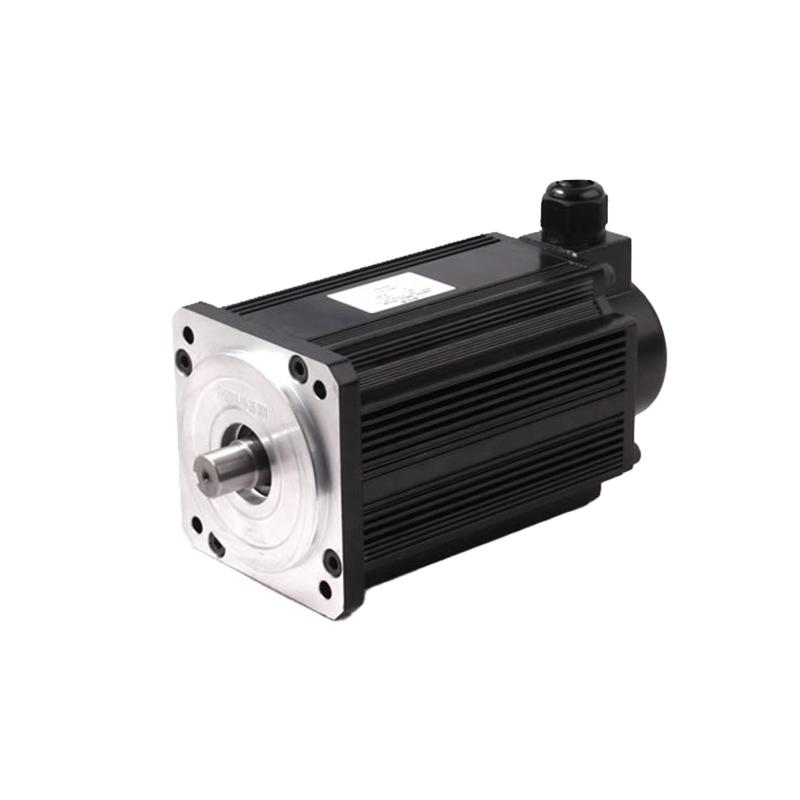

130系列直流伺服電機

130系列直流伺服電機（400W-4700W）型號額定電壓V額定功率KW額定扭矩Nm額定轉速RPM瞬時最大扭矩Nm最高轉速RPM最大功率KW反電勢V/Krpm圖紙下載130ST-M04010-24V240.4410001212001.320.0130ST-M04020-24V240.84200012...

服務熱線： 0519-86163212

在線咨詢

130系列直流伺服電機（400KW-4700W）

型號	額定電壓 V	額定功率 KW	額定扭矩 Nm	額定轉速 RPM	瞬時最大扭矩 Nm	最高轉速 RPM	最大功率 KW	反電勢 V/Krpm	圖紙下載
130ST-M04010-24V	24	0.4	4	1000	12	1200	1.3	20.0
130ST-M04020-24V	24	0.8	4	2000	12	2400	2.5	10.0
130ST-M04030-24V	24	1.3	4	3000	12	3600	3.8	6.7
130ST-M06010-24V	24	0.6	6	1000	18	1200	1.9	20.0
130ST-M06020-24V	24	1.3	6	2000	18	2400	3.8	10.0
130ST-M06030-24V	24	1.9	6	3000	18	3600	5.7	6.7
130ST-M07710-24V	24	0.8	7.7	1000	23	1200	2.4	20.0
130ST-M07720-24V	24	1.6	7.7	2000	23	2400	4.8	10.0
130ST-M07730-24V	24	2.4	7.7	3000	23	3600	7.3	6.7
130ST-M10010-24V	24	1.0	10	1000	30	1200	3.1	20.0
130ST-M10020-24V	24	2.1	10	2000	30	2400	6.3	10.0
130ST-M10030-24V	24	3.1	10	3000	30	3600	9.4	6.7
130ST-M15010-24V	24	1.6	15	1000	40	1200	4.7	20.0
130ST-M04010-48V	48	0.4	4	1000	12	1200	1.3	40.0
130ST-M04020-48V	48	0.8	4	2000	12	2400	2.5	20.0
130ST-M04030-48V	48	1.3	4	3000	12	3600	3.8	13.3
130ST-M06010-48V	48	0.6	6	1000	18	1200	1.9	40.0
130ST-M06020-48V	48	1.3	6	2000	18	2400	3.8	20.0
130ST-M06030-48V	48	1.9	6	3000	18	3600	5.7	13.3
130ST-M07710-48V	48	0.8	7.7	1000	23	1200	2.4	40.0
130ST-M07720-48V	48	1.6	7.7	2000	23	2400	4.8	20.0
130ST-M07730-48V	48	2.4	7.7	3000	23	3600	7.3	13.3
130ST-M10010-48V	48	1.0	10	1000	30	1200	3.1	40.0
130ST-M10020-48V	48	2.1	10	2000	30	2400	6.3	20.0
130ST-M10030-48V	48	3.1	10	3000	30	3600	9.4	13.3
130ST-M15010-48V	48	1.6	15	1000	40	1200	4.7	40.0
130ST-M15015-48V	48	2.4	15	1500	40	1800	7	19
130ST-M15020-48V	48	3.1	15	2000	40	2400	9.4	20.0
130ST-M15030-48V	48	4.7	15	3000	40	3600	14.1	13.3
130ST-M04010-72V	72	0.4	4	1000	12	1200	1.3	60.0
130ST-M04020-72V	72	0.8	4	2000	12	2400	2.5	30.0
130ST-M04030-72V	72	1.3	4	3000	12	3600	3.8	20.0
130ST-M06010-72V	72	0.6	6	1000	18	1200	1.9	60.0
130ST-M06020-72V	72	1.3	6	2000	18	2400	3.8	30.0
130ST-M06030-72V	72	1.9	6	3000	18	3600	5.7	20.0
130ST-M07710-72V	72	0.8	7.7	1000	23	1200	2.4	60.0
130ST-M07720-72V	72	1.6	7.7	2000	23	2400	4.8	30.0
130ST-M07730-72V	72	2.4	7.7	3000	23	3600	7.3	20.0
130ST-M10010-72V	72	1.0	10	1000	30	1200	3.1	60.0
130ST-M10020-72V	72	2.1	10	2000	30	2400	6.3	30.0
130ST-M10030-72V	72	3.1	10	3000	30	3600	9.4	20.0
130ST-M15010-72V	72	1.6	15	1000	40	1200	4.7	60.0
130ST-M15020-72V	72	3.1	15	2000	40	2400	9.4	30.0
130ST-M15030-72V	72	4.7	15	3000	40	3600	14.1	20.0
130ST-M04010-96V	96	0.4	4	1000	12	1200	1.3	80.0
130ST-M04020-96V	96	0.8	4	2000	12	2400	2.5	40.0
130ST-M04030-96V	96	1.3	4	3000	12	3600	3.8	26.7
130ST-M06010-96V	96	0.6	6	1000	18	1200	1.9	80.0
130ST-M06020-96V	96	1.3	6	2000	18	2400	3.8	40.0
130ST-M06030-96V	96	1.9	6	3000	18	3600	5.7	26.7
130ST-M07710-96V	96	0.8	7.7	1000	23	1200	2.4	80.0
130ST-M07720-96V	96	1.6	7.7	2000	23	2400	4.8	40.0
130ST-M07730-96V	96	2.4	7.7	3000	23	3600	7.3	26.7
130ST-M10010-96V	96	1.0	10	1000	30	1200	3.1	80.0
130ST-M10020-96V	96	2.1	10	2000	30	2400	6.3	40.0
130ST-M10030-96V	96	3.1	10	3000	30	3600	9.4	26.7
130ST-M15010-96V	96	1.6	15	1000	40	1200	4.7	80.0
130ST-M15020-96V	96	3.1	15	2000	40	2400	9.4	40.0
130ST-M15030-96V	96	4.7	15	3000	40	3600	14.1	26.7
130ST-M10030-192V	192	3	10	3000	30	3600	9	9.4
